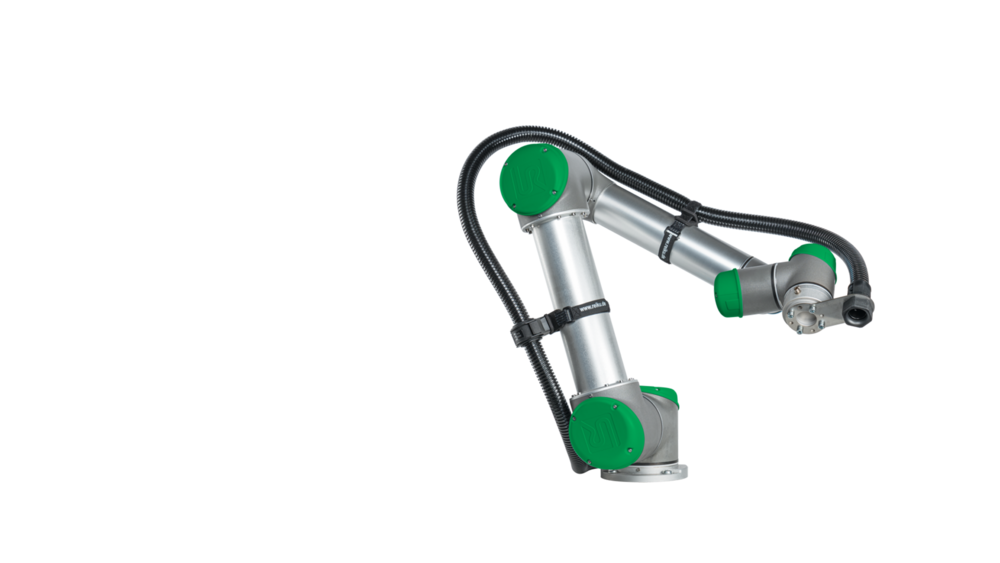

Robot and human in the same working room. Flexible movements due to many axis. Often designed with round robot arms without stop surfaces. The REIKU Universal attachments LSDFB, MESUB & TPXWB for CoBots and industrial robots.

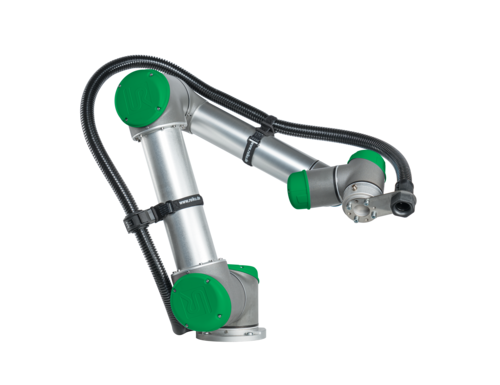

For low loads, the CoBot Kit "EASY" should be used. Two universal fastenings guide the supplied corrugated tube. Two sealing ends serve as end closure. see drawings with parts list of the kits: CPUW1-17 and CPUW1-23

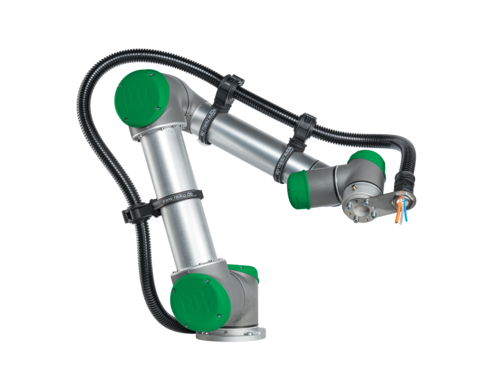

For light to medium loads, the CoBot Kit "SMART" should be used. Two universal mountings guide the supplied corrugated tube. It is mounted rotatably in two clamps. Fixed in one clamp by a jaw, sliding in the other one. End terminations via screwed connections with locknuts. Mounting on axis 6 with the Cobot Holder. see drawings with parts list of the kits: CPUD1-17 and CPUD1-23

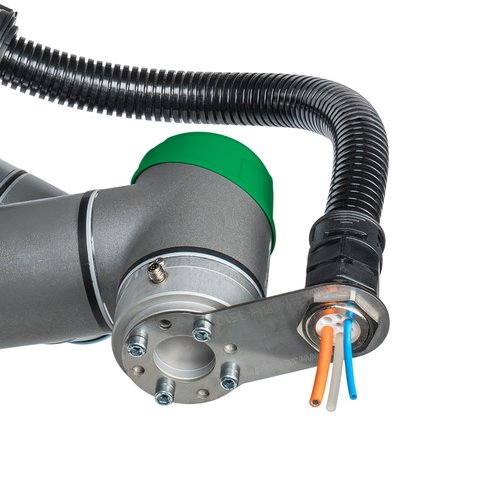

Use CoBot Kit "HEAVY" for heavy loads. Two Cobot clamps fixed to the Cobot arm guide the supplied tubing. The tubing is mounted in the Gripping Clamp on one axis, and is held firmly in the Gripping Clamp on the other axis. A screw connection with bend protection on the Cobot holder of the axis 6 and a screw connection with lock nut as end closure. Use the protector as a stop. see drawings with parts list of the kits: CPUM1-17, CPUM1-23, CPUM2-17, CPUM2-23, CPUM3-17, CPUM3-23
